class go_benchmark.OddSquare(dimensions=2)

Odd Square test objective function.

This class defines the Odd Square global optimization problem. This is a multimodal minimization problem defined as follows:

f_{\text{OddSquare}}(\mathbf{x}) = -e^{-\frac{d}{2\pi}} \cos(\pi d) \left( 1 + \frac{0.02h}{d + 0.01} \right )

Where, in this exercise:

\begin{cases} d = n \cdot \smash{\displaystyle\max_{1 \leq i \leq n}} \left[ (x_i - b_i)^2 \right ] \\
\\
h = \sum_{i=1}^{n} (x_i - b_i)^2 \end{cases}

And \mathbf{b} = [1, 1.3, 0.8, -0.4, -1.3, 1.6, -0.2, -0.6, 0.5, 1.4, 1, 1.3, 0.8, -0.4, -1.3, 1.6, -0.2, -0.6, 0.5, 1.4]

Here, n represents the number of dimensions and x_i \in [-5 \pi, 5 \pi] for i=1,...,n and n \leq 20.

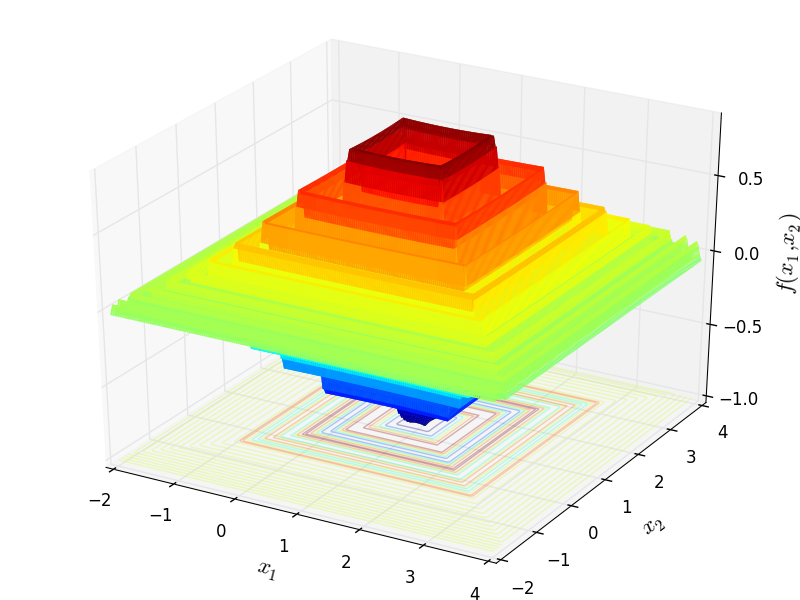

Odd Square function

Two-dimensional Odd Square function

Global optimum: f(x_i) = -1.0084 for \mathbf{x} \approx b
